A very innovative RDS tool is available since early 2015

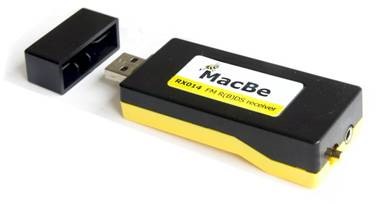

RX014 - RDS receiver evaluation tool

RX014 is a high quality tool intended to receive and analyse FM broadcasts which not only transmit audio but also carry RDS/RDS2/RBDS data.

RDS tool

RX014 is ideally suited to be used as a reference receiver during road tests. An ultra-fast scanner is built in which will do a full band scan in 1 second on a 100 kHz grid to show a full RSSI picture of the entire FM band, so signal conditions can be monitored continuously. The locations of the alternative frequencies are shown simultaneously.

RX014 is a very powerful tool---if not the most powerful---to monitor and fully decode all broadcast RDS/RDS2/RBDS data. The data is presented in an easy to understand way and also includes statistics on received data quality.

All received data can be stored in a file and played back later for further analysis.

The RX014 can be used without a computer with the new DS016 docking station instead.

Using the RX014 required a so far a PC. However, many users preferred a stand-alone solution for remote monitoring. The DS016 docking station turns an RX014 into a very sophisticated self-contained data gathering tool.

The RX014 control program has been updated to fully support the new DS016.

A second innovative RDS tool was first presented to the RDS Forum 2012.

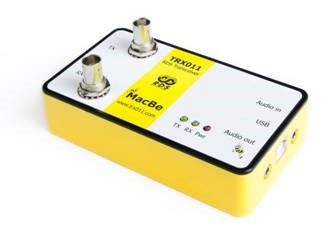

TRX011 - RDS Transceiver

This universal RDS transceiver can receive and decode all RDS transmissions worldwide. The received data can be stored, analysed (presented in a very convenient way, in an .xls file) and can also be transmitted, at low power, for other tests.

RDS tool

It is possible, with (supplied) control software, to compose RDS signals according to the most recent RDS standards. All RDS features such as ODA, RT+ and TMC can be constructed according to the latest specifications.

The TRX011 unit is an extremely powerful tool for everyone who is professionally involved in RDS or RBDS.

The TRX011 unit connects to the host via USB and does not require additional power. The software runs on all Windows platforms and does not require any drivers.

RDS tool

Now, both the RX014 and the TRX011 also with UTF-8 character coding and decoding:

Many of the latest features of RDS which are described in the RDS standard IEC 62106 :2018 are already implemented in both, the RX014 and the TRX 011, such as LPS (Long Program Service name coded in UTF-8), eRT and eRT+, also coded in UTF-8 and decoding of tunnelled RDS data transmitted on the upper RDS carriers. Naturally this new firmware version may be freely downloaded from the respective MacBe website, as it is always the case for MacBe products.

RDS tool

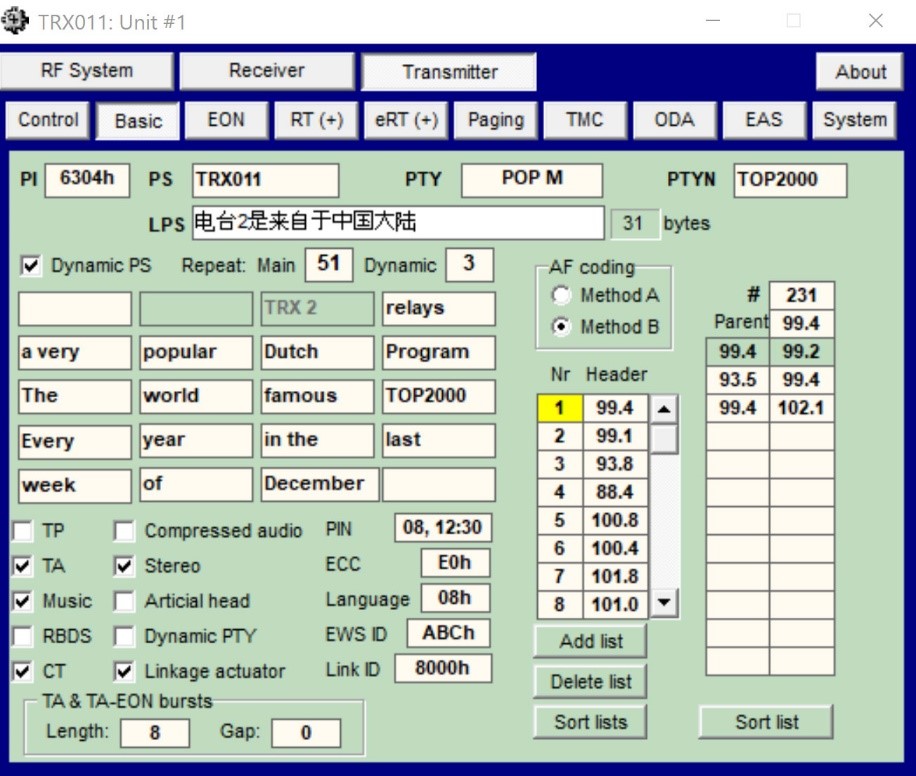

TRX011 screen with LPS with UTF-8 character coding

RDS tool

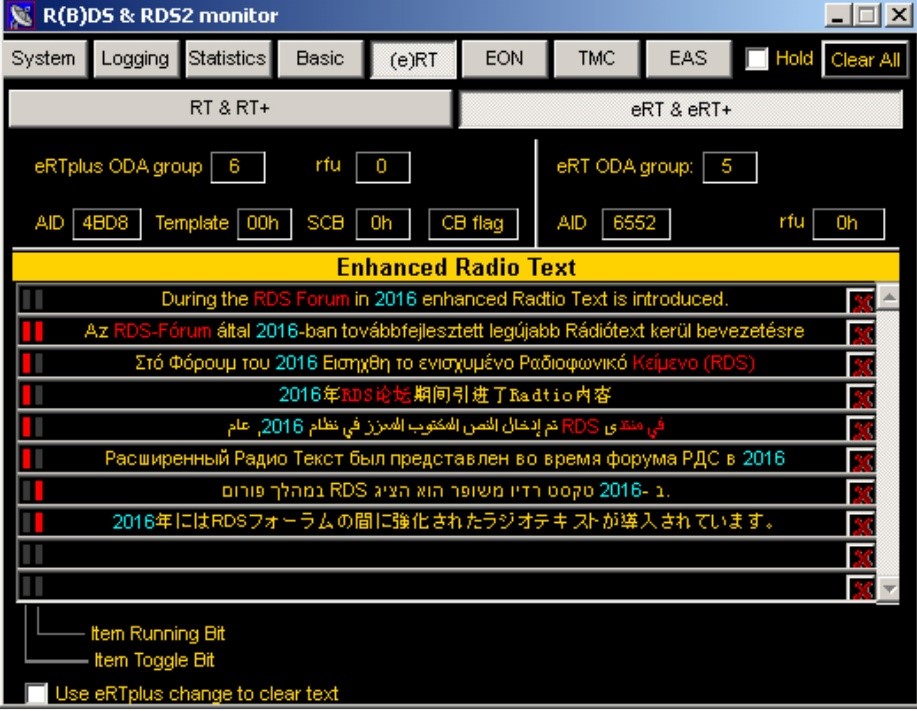

RX014 screen with eRT using UTF-8 character codes

RDS tool

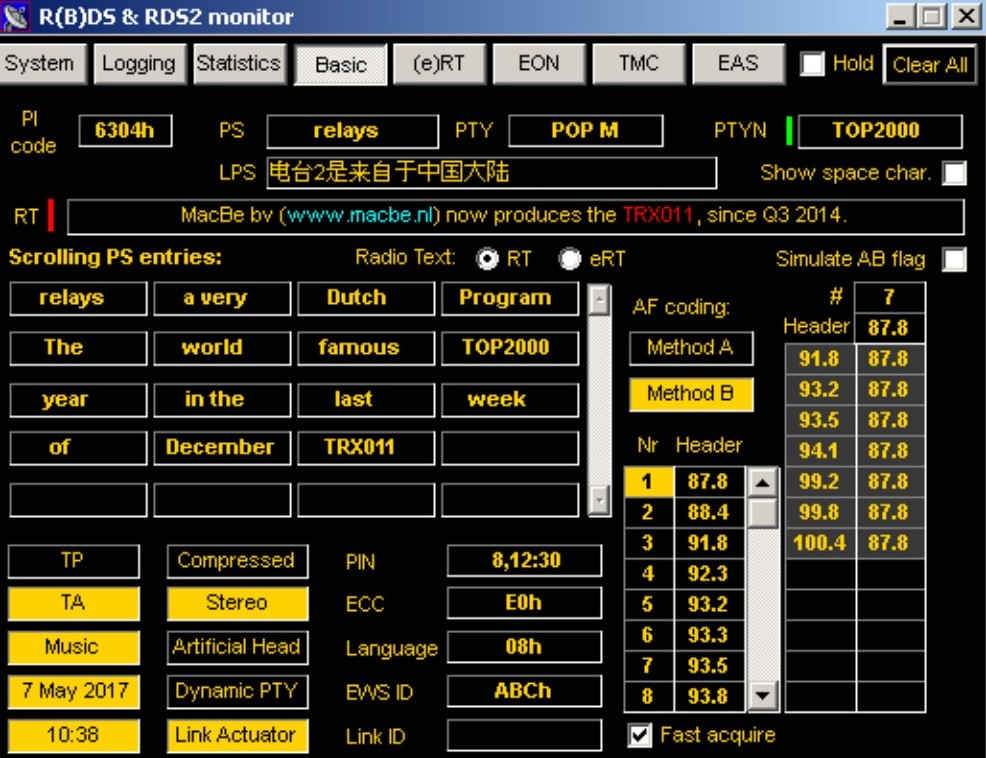

RX014 screen with LPS using UTF-8 character codes

Note: The creator of these devices, RDS Forum member Joop Beunders, passed away at the end of 2023. The next RDS Forum meeting in October 2024 will look into possibilities to continue the manufacturing of these devices.
